Annealing is a heat treatment in which material is exposed to an elevated temperature and slowly cooled. Annealing of the material changes physical properties of the material such as strength and hardness.

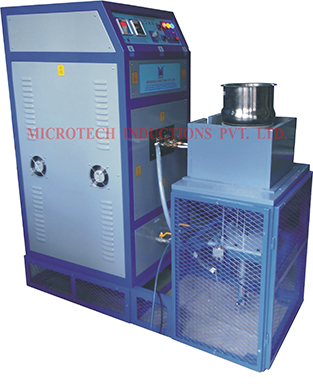

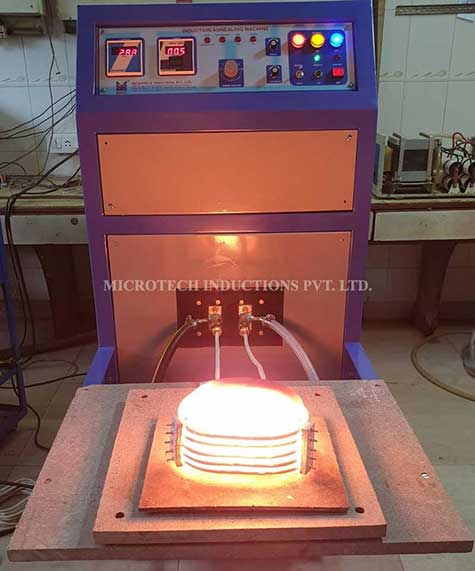

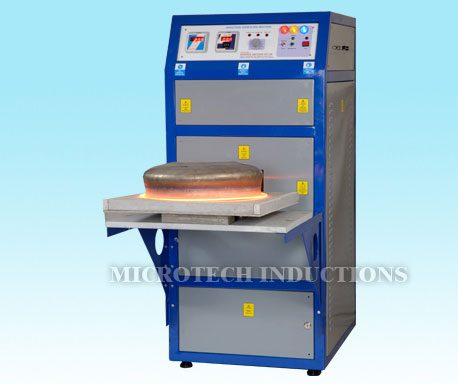

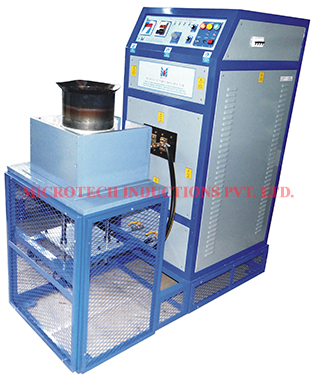

Microtech induction annealing machines are designed to be used for Normalising, Stress relieving and Process Annealing.

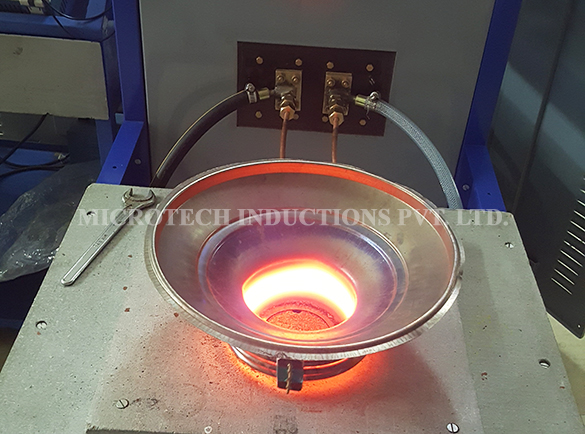

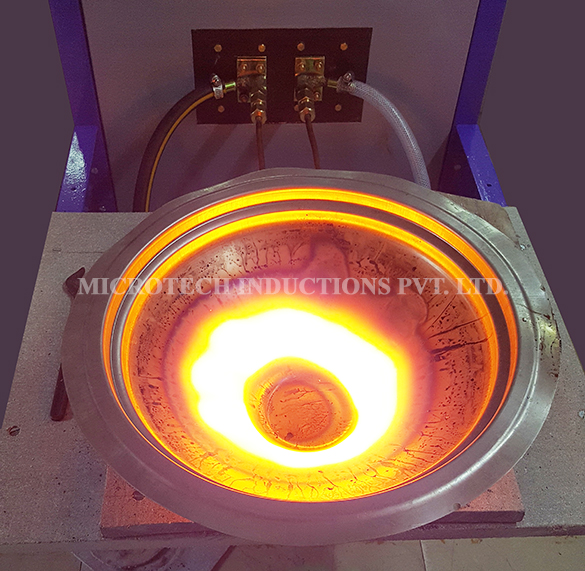

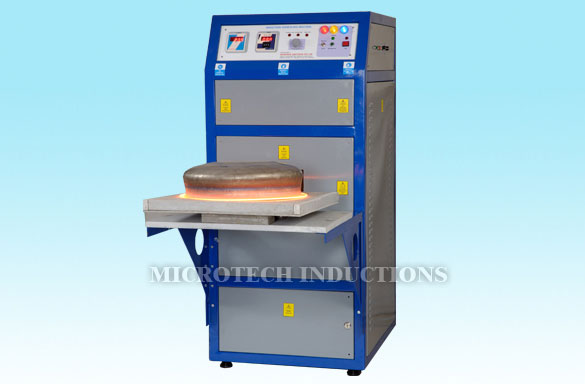

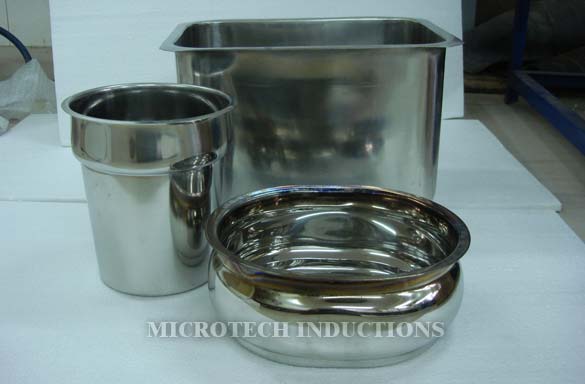

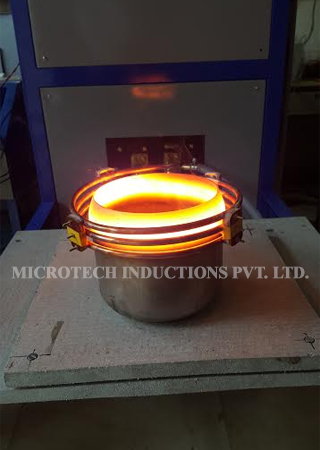

- Stainless Steel / Aluminum Utensils
- All Cold Formed Steel Components.
- Stress Relieving.
- Post weld Annealing.
- Annealing of Copper tubes.
- Annealing of knife, blade ends.
- Shell Annealing.

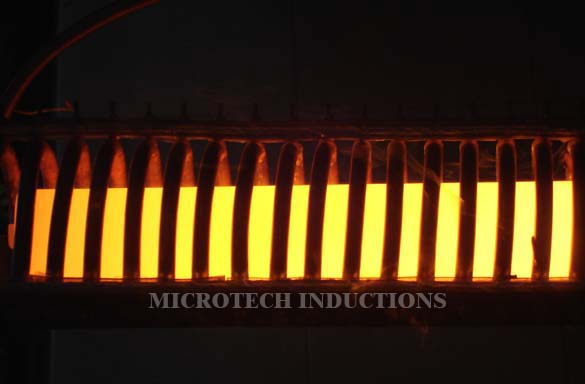

- Annealing of wires.
- Continuous Annealing of copper wires.
- Annealing of brazing wires & Rods.

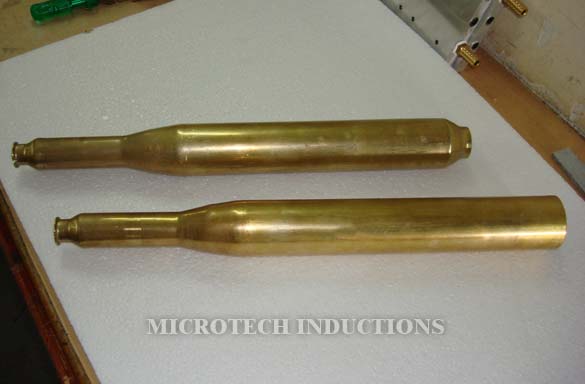

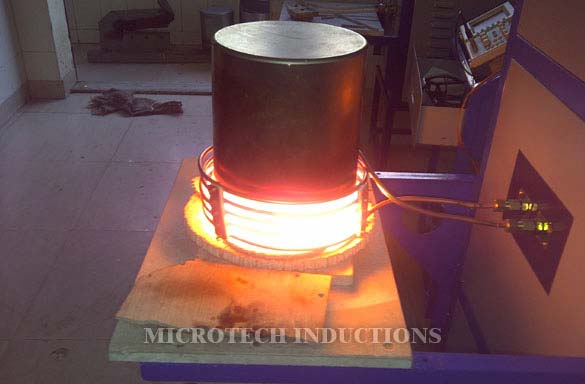

- Annealing of Milk Cans, Oxygen cylinder for neck formation.
 Uniform annealing with better quality end product |
||||
| Lesser Annealing cost comparing to conventional methods |
||||
| Faster Annealing cycle |
||||
| Higher productivity |
||||
| Highest system efficiency |
||||
| Highly adaptable for automation |
||||
| Eco-friendly due to noiseless and flameless operation |
||||
| No statutory approvals required |
||||
| Lesser risk involved compared to conventional methods |
||||
| Application Specific |
||||
| Auto or manual mode operation |
||||
| Improved power factor |
||||
| Tropicalised design |
||||
| Compact size |
| POWER RANGE | 1-5KW | 5-15KW. | 15-50KW | 50 -200KW |
| FREQUENCY RANGE | 5-600kHz | 01-400 kHz | 01-30kHz | 01 – 30kHz |
| ADAPTATION TO CHANGE LOAD CHARECTERISTICS | YES | YES | YES | YES |
| POWER CONTROL | MANUAL | AUTO | AUTO | AUTO |
| LOAD SENSED SELF TUNING | YES | YES | YES | |
| SIZE (mm) | W-225 B-500 H-430 |
W-530 B-640 H-1110 |
W-620 B-725 H-1370 |
W-1000 B-1090 H-1675 |
| INPUT POWER RANGE | SINGLE PHASE 230V/50Hz. |
THREE PHASE 230V/50Hz |
THREE PHASE 440V/50Hz |
THREE PHASE 440V/50Hz |
In our Endeavour to make better products, Microtech Induction Pvt. Ltd. reserves the right to change any specifications at any moment and without prior notice, to the models (including programming) and their accessories.
